HR 7402

type ST · family 1SS1 · 21 kV maximum anode voltage · 90° deflection · 5 windings · 282 g

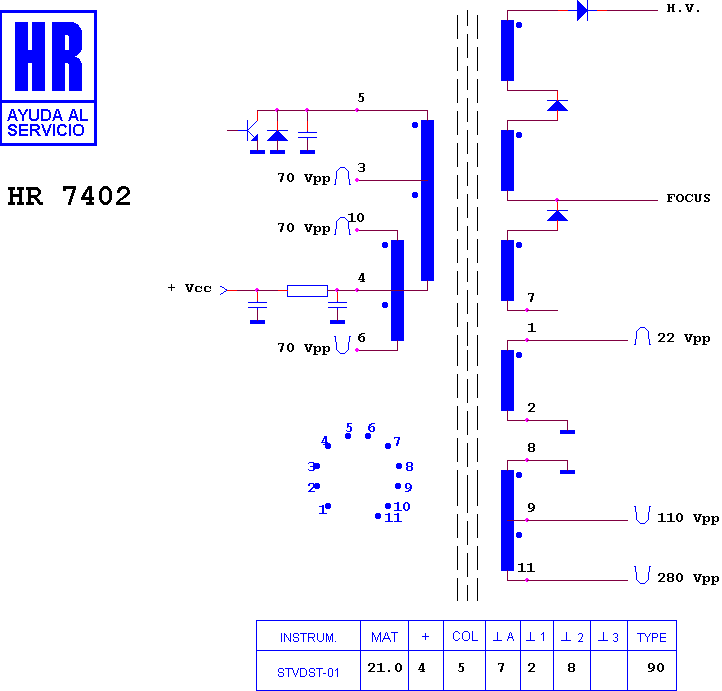

Schematic diagram for HR 7402
schematic

Manufacturer equivalents (8)

1-439-387-11 · 1-439-387-13 · 1-439-387-21 · 726 572 1 · FAT3931 · KN3931N · TR 7309 · UX 1110(FX)

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7401

Fitted to (12)

GRANADA 51 E 073 · SONY C 39 F · SONY CHASIS SX · SONY KV 21 XRB · SONY KV 21 XRD · SONY KV 21 XRL · SONY KV 21 XRTA · SONY KV 21 XRTB · SONY KV 21 XRTD · SONY KV 21 XRTP · SONY KV 21 XRTU · SONY KV 21 XRU

Search this part in the full database
