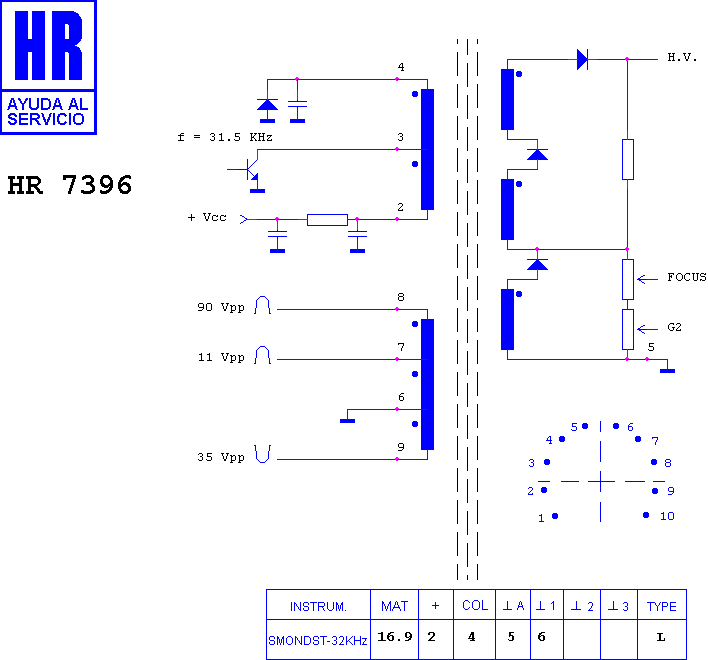

HR 7396

type SM · family 1RP · 16.9 kV maximum anode voltage · L° deflection · 3 windings · 388 g

Manufacturer equivalents (1)

46 155 0041

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

MAGNETEK 1438-10-001 · MAGNETEK MONITOR · NCR 1438-10-001 · NCR MONITOR

Search this part in the full database
