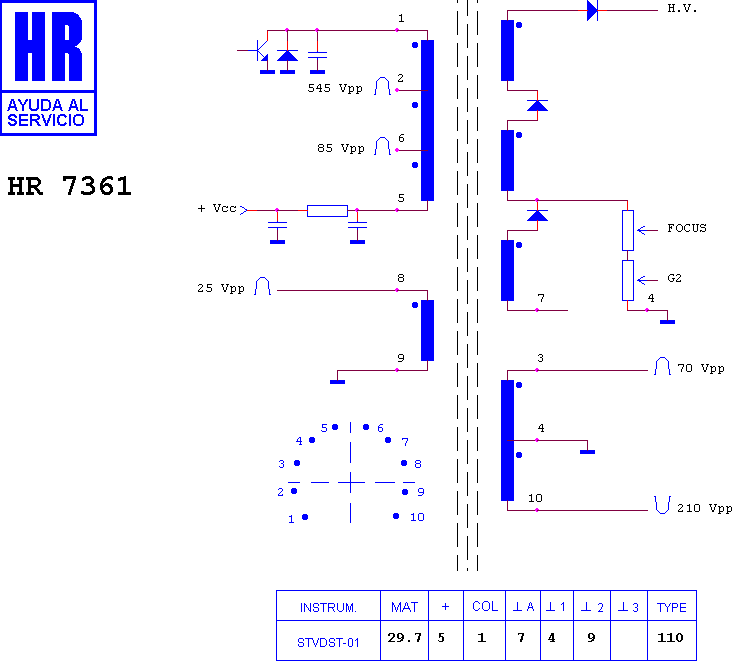

HR 7361

type ST · family 1AP2 · 29.7 kV maximum anode voltage · 110° deflection · 322 g

Manufacturer equivalents (8)

00 H 07012500 · 01800034852 · 1800034852 · 4515 88 53 · 4515 88 55 · 472977.00 · 472977.01 · FAT 30758

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
