HR 7354

type ST · family 1AP1 · 20.1 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

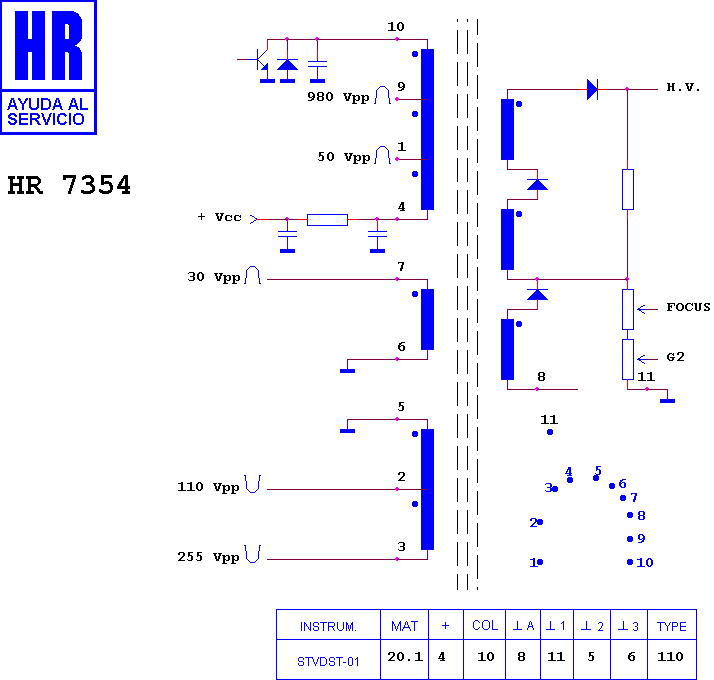

Schematic diagram for HR 7354
schematic

Manufacturer equivalents (11)

1192.0317 · 1362.3036 · 3110004 · 312213837755 · 3128 138 20010 · 3128 138 20011 · 3128 138 20012 · AT 2078/83 I · AT 2078/83 TB · AT 2078/83 TI · FAT30750

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7258 · HR 6362

Fitted to (9)

MAGNADYNE CHASIS T 2000 · MAGNADYNE CHASIS T 2001 · RADIOMARELLI 3281 · RADIOMARELLI CHASIS T 2000 · RADIOMARELLI CHASIS T 2001 · RADIOMARELLI RM 3251 · RADIOMARELLI RM 3280-28 P · RADIOMARELLI RM 3281 · RADIOMARELLI RM 3282
