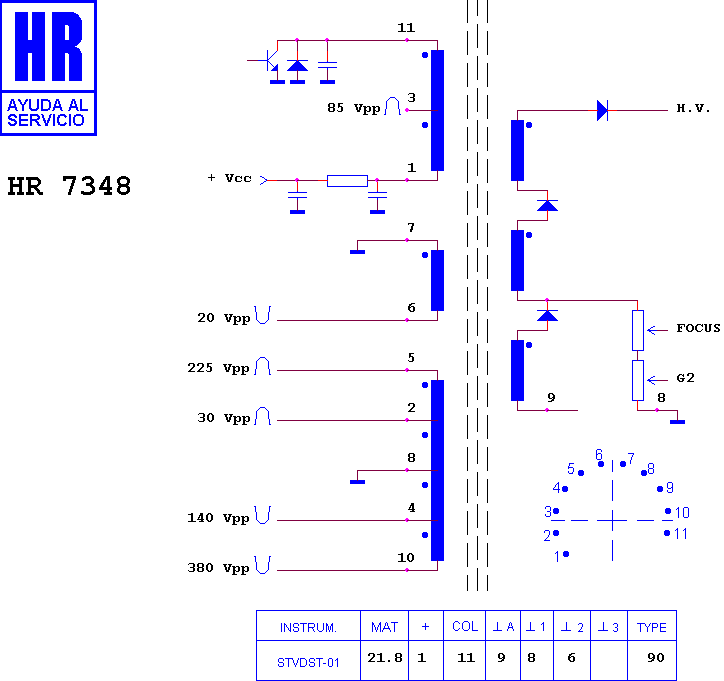

HR 7348

type ST · family 1AP1 · 21.8 kV maximum anode voltage · 90° deflection · 328 g

Manufacturer equivalents (4)

F 1247 CE · F 1257 CE · RTRNF1247CEZZ · RTRNF1257CEZZ

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

SHARP CX 2032 · SHARP CX 2073 · SHARP CX 2272 · SHARP KC 224 X 1
