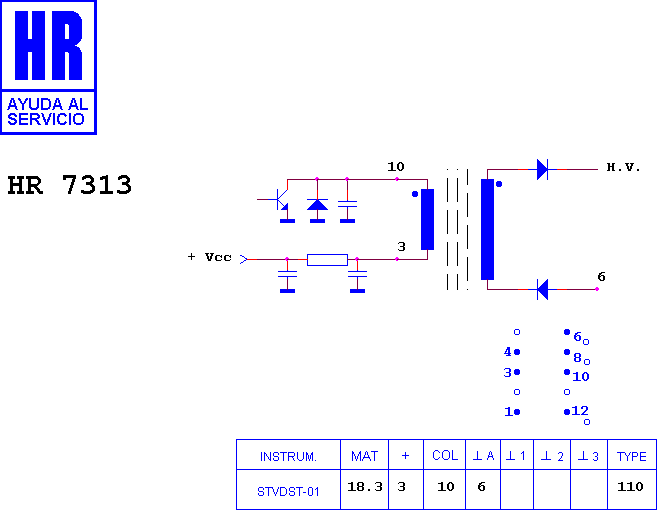

HR 7313

type ST · family 1OS · 18.3 kV maximum anode voltage · 110° deflection · 2 windings · 257 g

Manufacturer equivalents (4)

534 TX 0190 · 534 TX 0192 · AT 90/25/05 · KT 5001

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead
• HR 16529 — Focus control

Fitted to (6)

TELEFUNKEN BISONIC 14" · TELEFUNKEN BISONIC 20" · TELEFUNKEN CHASIS 415/1 · TELEFUNKEN CHASIS 801 · TELEFUNKEN CHASIS 802 · TELEFUNKEN CHASIS 802 A
