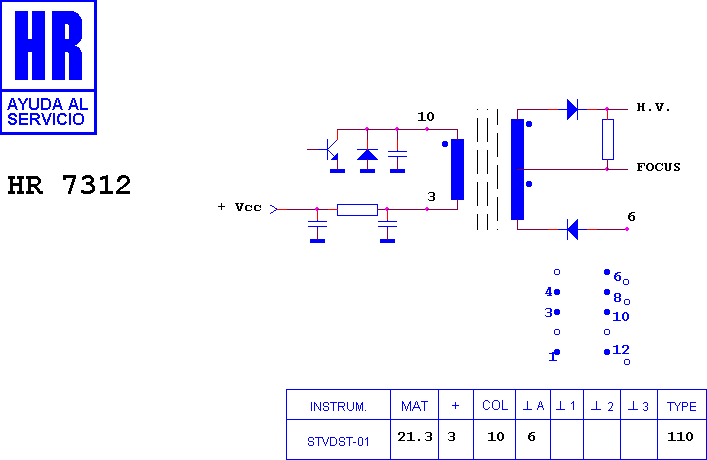

HR 7312

type ST · family 1OS · 21.3 kV maximum anode voltage · 110° deflection · 2 windings · 264 g

Manufacturer equivalents (6)

309 311 948 · 534 TX 0226 · AT 110/26/09 F · FAT 3825 · KN 3825 · ME/6240-00

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead
• HR 16529 — Focus control

Fitted to (8)

TELEFUNKEN 1121 · TELEFUNKEN 1310 · TELEFUNKEN 1410 · TELEFUNKEN 415 · TELEFUNKEN 415 D · TELEFUNKEN CHASIS 615 C 2 · TELEFUNKEN CHASIS 815 C 1 · TELEFUNKEN CHASIS 815 C 2
