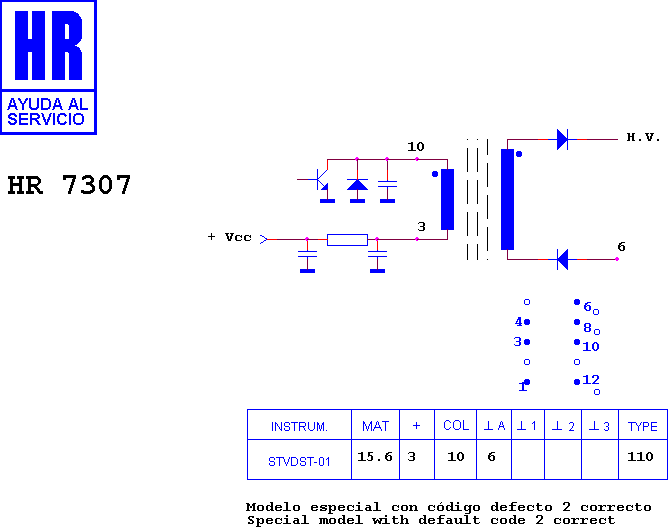

HR 7307

type ST · family 1OS · 110° deflection · 2 windings · 261 g

Manufacturer equivalents (9)

104759.20 · 309 311 941 · 309 311 978 · 534 TX 0239 · 534 TX 0377 · AT 110/25/06 · AT 110/25/06 F · AT 110/25/15 · AT 110/26/15

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead
• HR 16529 — Focus control

Fitted to (12)

TELEFUNKEN 1420 · TELEFUNKEN 5200 · TELEFUNKEN 7590 P · TELEFUNKEN 8919 · TELEFUNKEN CHASIS 615 · TELEFUNKEN CHASIS 615 A · TELEFUNKEN CHASIS 615 A 1 · TELEFUNKEN CHASIS 615 A 2 · TELEFUNKEN CHASIS 615 A 3 · TELEFUNKEN CHASIS 615 B 3 · TELEFUNKEN COLORIMAGE · TELEFUNKEN PALCOLOR
