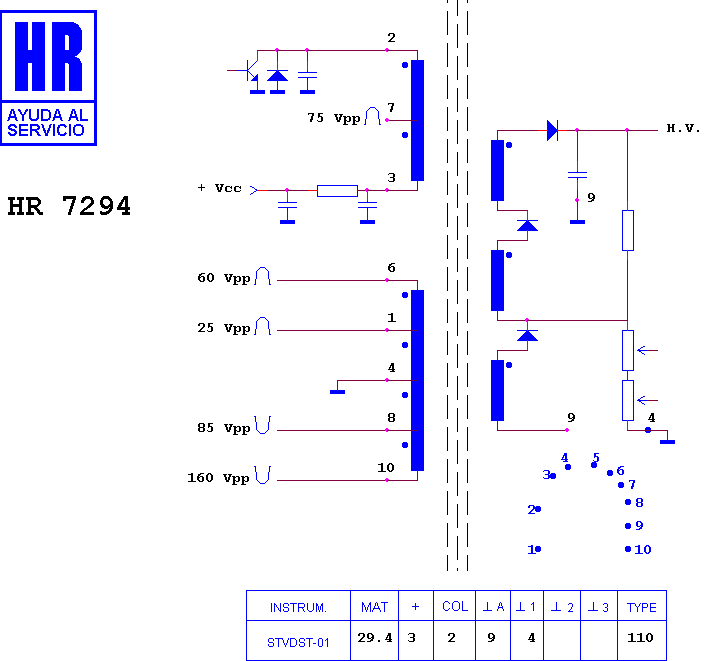

HR 7294

type ST · family 1VCP · 29.4 kV maximum anode voltage · 110° deflection · 428 g

Manufacturer equivalents (11)

003101119 · 1362.5070 · 729 415 0 · 965010300 · FAT 30677 · HR 7294 · KN 35361 N · RO914 · TLF 15548 F · TLF 15568 F · TR914

Fitted to (29)

PANASONIC - MATSUSHITA CHASIS ALPHA 2 · PANASONIC - MATSUSHITA CHASIS ALPHA 3 · PANASONIC - MATSUSHITA TC 25 W 2 F · PANASONIC - MATSUSHITA TX 25 A 2 · PANASONIC - MATSUSHITA TX 25 A 2 C · PANASONIC - MATSUSHITA TX 25 A 2 CI · PANASONIC - MATSUSHITA TX 25 A 2 E · PANASONIC - MATSUSHITA TX 25 A 2 E/BK · PANASONIC - MATSUSHITA TX 25 A 2 X · PANASONIC - MATSUSHITA TX 25 G 1 · PANASONIC - MATSUSHITA TX 25 W 2 · PANASONIC - MATSUSHITA TX 25 W 2 A · PANASONIC - MATSUSHITA TX 25 W 2 C · PANASONIC - MATSUSHITA TX 25 W 2 CI · PANASONIC - MATSUSHITA TX 25 W 2 E · PANASONIC - MATSUSHITA TX 25 W 2 S · PANASONIC - MATSUSHITA TX 28 A 2 · PANASONIC - MATSUSHITA TX 28 A 2 C · PANASONIC - MATSUSHITA TX 28 A 2 CI · PANASONIC - MATSUSHITA TX 28 A 2 X · PANASONIC - MATSUSHITA TX 28 AZE · PANASONIC - MATSUSHITA TX 28 G 1 · PANASONIC - MATSUSHITA TX 28 W 2 · PANASONIC - MATSUSHITA TX 28 W 2 C · PANASONIC - MATSUSHITA TX 28 W 2 C 1 · PANASONIC - MATSUSHITA TX 28 W 2 CI · PANASONIC - MATSUSHITA TX 28 W 2 E · PANASONIC - MATSUSHITA TX 28 W 2 S · PANASONIC - MATSUSHITA TX 33 A 2 CI
