HR 7220

type SM · family 1AP1 · 37.5 kV maximum anode voltage · H° deflection · 2 windings · 370 g

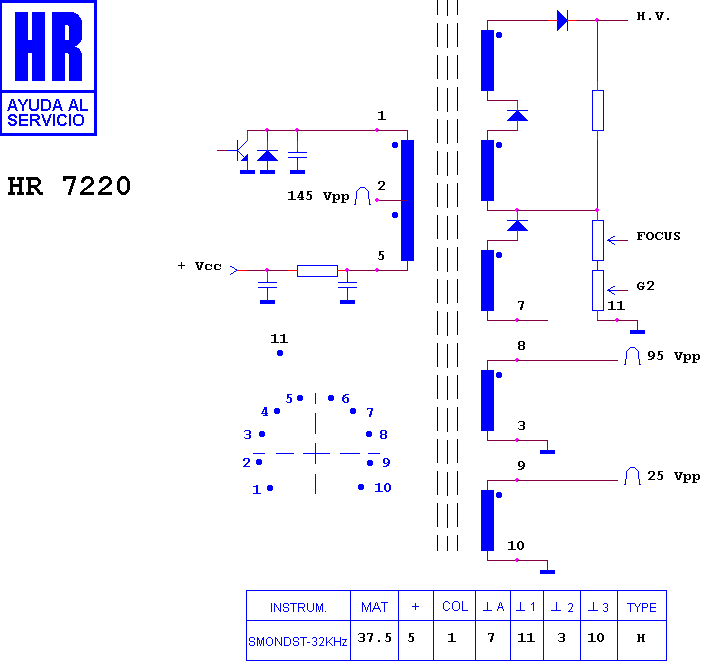

Schematic diagram for HR 7220
schematic

Manufacturer equivalents (6)

1105.1068 · 1192.0117 · 1242.5002 · 29201.372.97 · 7200.857.900 · ME/6427-00

Fitted to (10)

GRUNDIG 25 · GRUNDIG 25-449/12 · GRUNDIG 27-649/12 · GRUNDIG CHASIS CUC 4200 · GRUNDIG CHASIS CUC 5200 · GRUNDIG P · GRUNDIG P 25 · GRUNDIG P 25-449/12 · GRUNDIG P 27-649/12 · GRUNDIG SUPER COLOR P

Search this part in the full database
