HR 7181

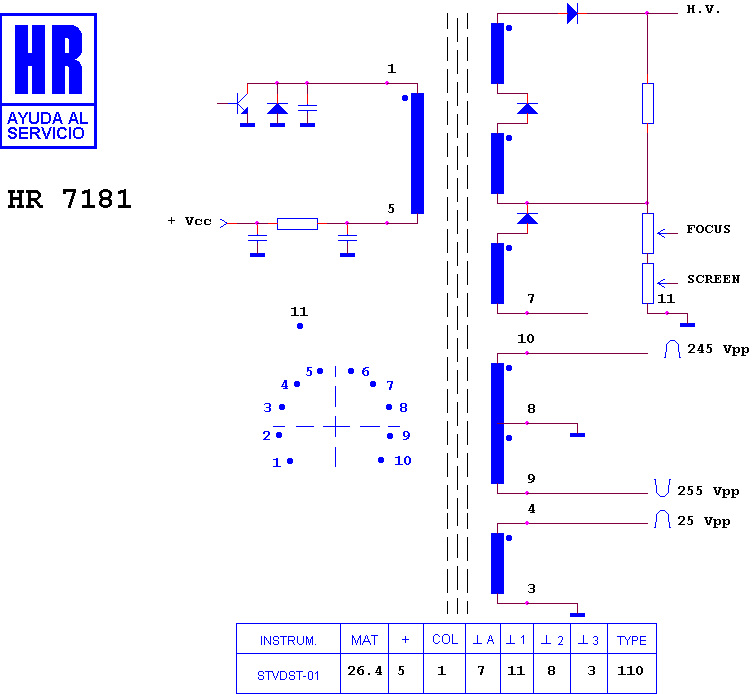

Schematic diagram for HR 7181 — schematic

Manufacturer equivalents (6)

1192.0227 · 1362.3045 · FAT30536 · GT 012 · HR 7181 · KN30536

Fitted to (2)

TRIAD 7050 · TRIAD ATV 70

Search this part in the full database
