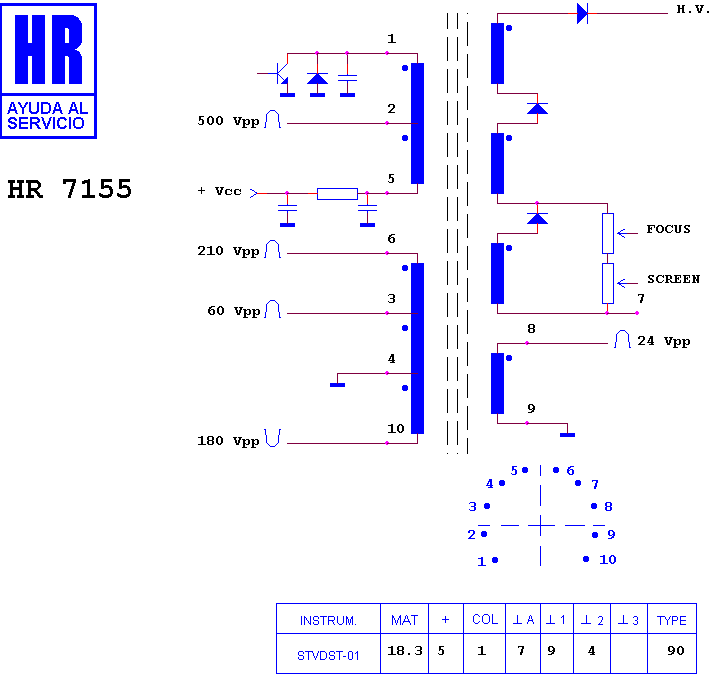

HR 7155

type ST · family 1NP1 · 18.3 kV maximum anode voltage · 90° deflection · 278 g

Manufacturer equivalents (3)

2434011 · 472625.00 · 472625.01

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SONOLOR 209 SN 02 · SONOLOR CHASIS M 4 FF 02 K
