HR 7151

type ST · family 1AP1 · 16.5 kV maximum anode voltage · 90° deflection · 3 windings · 370 g

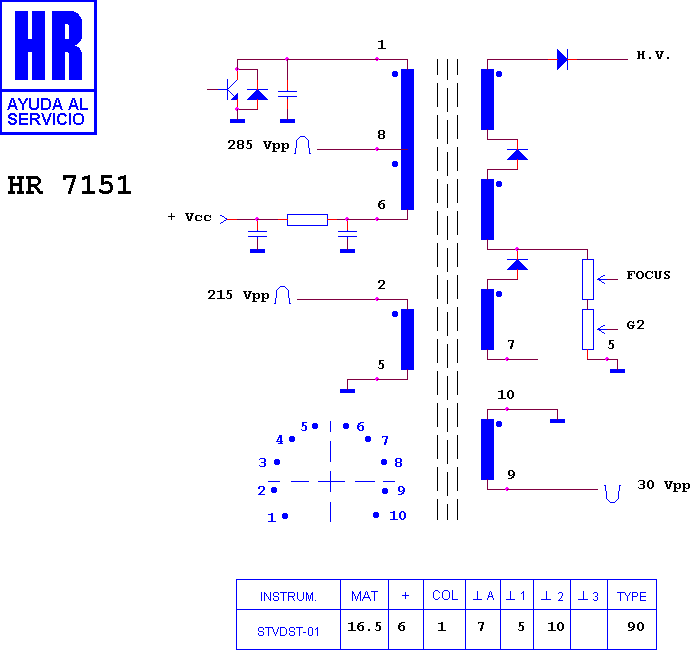

Schematic diagram for HR 7151
schematic

Manufacturer equivalents (11)

00 D-4-247-001 HT1 · 003301017 · 003301022 · 00D4247001 · 1105.1107 · 1105.1277 · 260.561 · 3553800020 · FAT3553 · TR 4184 · Y 260561

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (21)

FERGUSON-THORN-EMI 16 A 1 · FERGUSON-THORN-EMI 16 A 2 · FERGUSON-THORN-EMI 16 TO 20 · FERGUSON-THORN-EMI 20 E 1 · FERGUSON-THORN-EMI 20 E 2 · FERGUSON-THORN-EMI 200 · FERGUSON-THORN-EMI 2000 · FERGUSON-THORN-EMI 4184 · FERGUSON-THORN-EMI CHASIS TX 90 · FERGUSON-THORN-EMI CHASIS TX 90 WHITE SPOT · FERGUSON-THORN-EMI T 9044 A · FERGUSON-THORN-EMI TX 90 · GRANADA C 16 CT 1 · GRANADA CHASIS TX 90 · GRANADA TX 90 · GRANADA WHITE SPOT · LOGIK 4090 · LOGIK 4094 · LOGIK TX 90 · LOGIK WHITE SPOT · ULTRA 2001
