HR 7122

type SM · family 1AS1 · 31 kV maximum anode voltage · H° deflection · 3 windings · 310 g

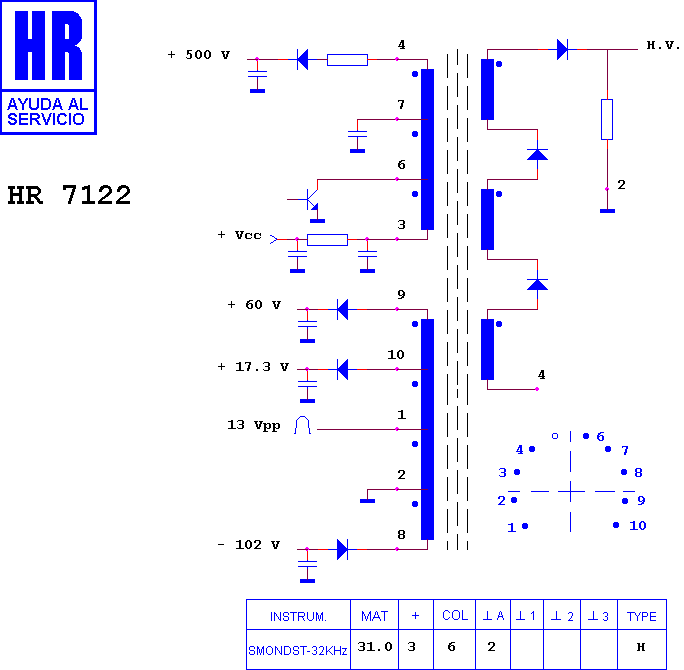

Schematic diagram for HR 7122
schematic

Manufacturer equivalents (13)

5062664865 · 5062664867 · 5062664869 · 5062666101 · 8503 · MAT33000 · TFB 648 · TFB 648 E · TFB 648 G · TFB 648 H · TFB 648 I · TFB 661 · TFB 661 A

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

IBM 8503 · IBM MONITOR · TATUNG MG 14 · TATUNG MONITOR · TVM MG 14 · TVM MONITOR
