HR 7106

31.5 kV maximum anode voltage · 110° deflection · 4 windings · 278 g

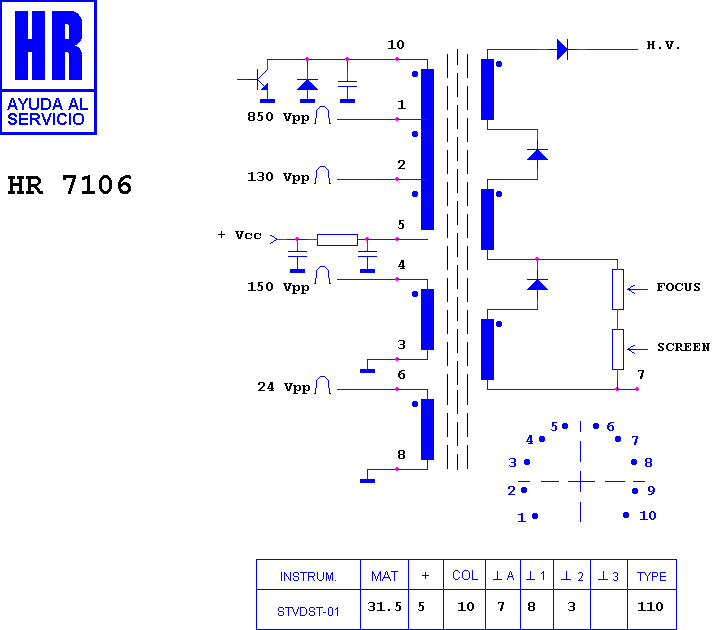

Schematic diagram for HR 7106
schematic
Schematic diagram for HR 7106
schematic (archived)

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
