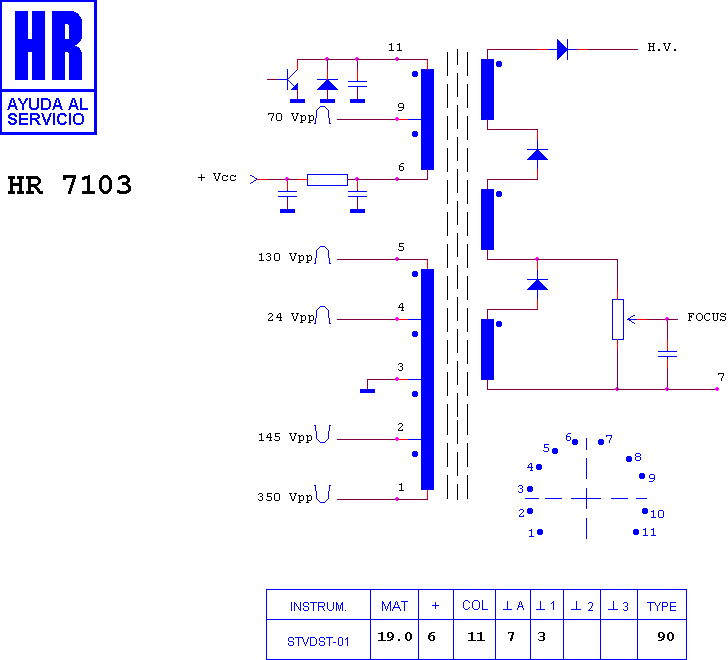

HR 7103

type ST · family 1AP · 19 kV maximum anode voltage · 90° deflection · 319 g

Manufacturer equivalents (4)

BSC 1102 · BSC 23-14058 · BSC 26-5601 · MSH-S386

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (15)

CONTEC KT 8135 · CONTEC KT 815 · TELEFUNKEN 2016 · TELEFUNKEN 415 · TELEFUNKEN 500 · TELEFUNKEN 5000 · TELEFUNKEN 5016 · TELEFUNKEN 5216 · TELEFUNKEN 6016 · TELEFUNKEN 6060 · TELEFUNKEN 6060 X · TELEFUNKEN 6061 X · TELEFUNKEN CTE · TELEFUNKEN GF · TELEFUNKEN PALCOLOR
