HR 7102

21.7 kV maximum anode voltage · 90° deflection · 3 windings · 295 g

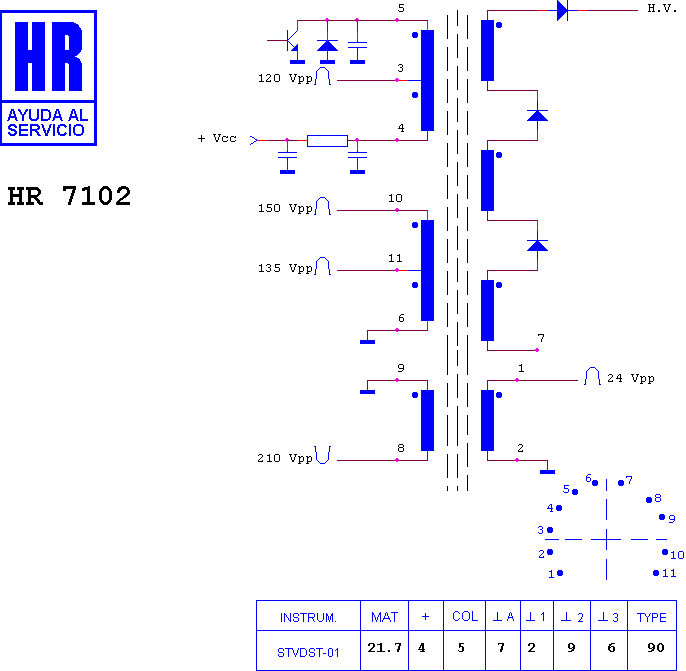

Schematic diagram for HR 7102 — schematic

Schematic diagram for HR 7102 — schematic (archived)

Schematic diagram for HR 7102 — accessory sheet

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

HR 16524 — Focus control
