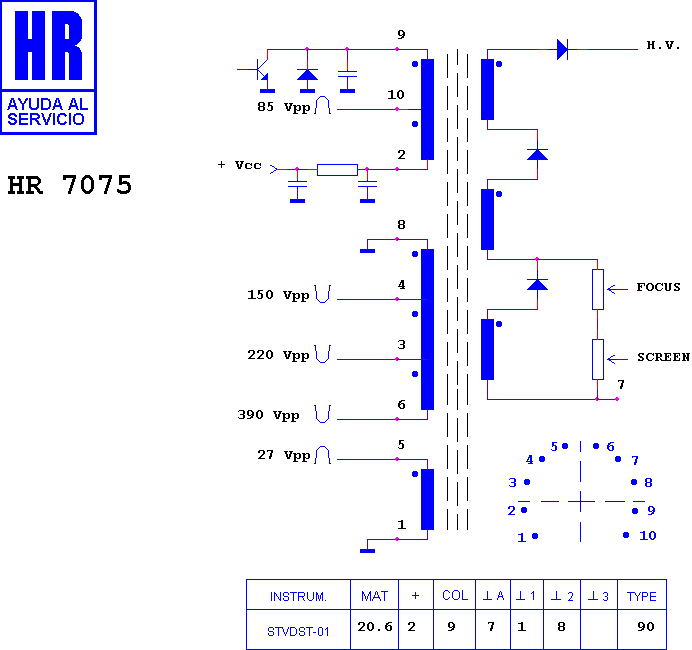

HR 7075

type ST · family 1NP1 · 20.6 kV maximum anode voltage · 90° deflection · 248 g

Manufacturer equivalents (4)

17.852 · HR 7075 · HR 7075-01 · HR 7075-02

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (15)

ELBE 1402 · ELBE CHASIS E 10 · ELBE CHASIS E 10 D · ELBE CHASIS E 10 MD · ELBE SERIE 70-20 · ELBE SERIE 72-20 · ELBE TVC 1402 · ELBE TVC 1403 · ELBE TVC 1403 MD · ELBE TVC 1430 · ELBE TVC 1430 MD · ELBE TVC 1607 · ELBE TVC 1607 MD · ELBE TVC 2070 · ELBE TVC 2072 MD
