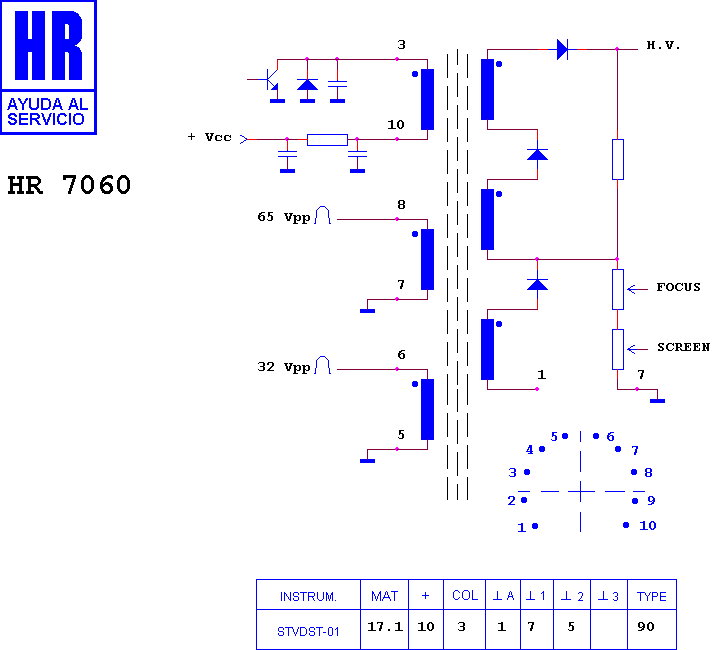

HR 7060

type ST · family 1AP2 · 17.1 kV maximum anode voltage · 90° deflection · 4 windings · 320 g

Manufacturer equivalents (5)

1105.0120 · 1105.0127 · ME/6030-00 · TDS 112 · TDS 112 B

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

NOBLICO TVC 14" · NOBLICO TVC 16" · NOBLICO TVC 20" · NOBLICO TVC 20" 90§
