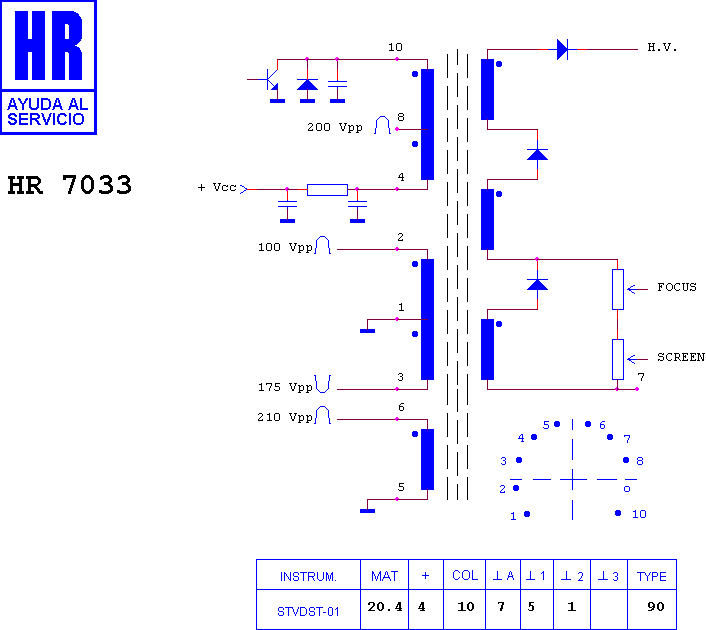

HR 7033

type ST · family 1NP1 · 20.4 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

Manufacturer equivalents (4)

32003.00 · 32003.01 · 32003.02 · 32303.00

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

THOMSON CHASIS ICC 3 S

Search this part in the full database
