HR 7021

type ST · family 1NP1 · 21.1 kV maximum anode voltage · 90° deflection · 276 g

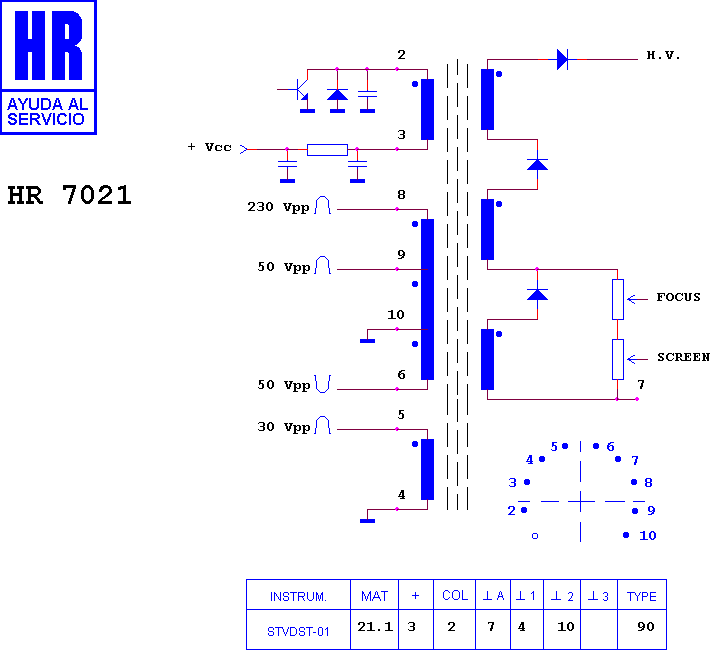

Schematic diagram for HR 7021
schematic

Manufacturer equivalents (6)

32019.00 · 32019.01 · 32319.00 · 32319.01 · 32319.02 · HR 7021

Fitted to (1)

UNIC CHASIS 6870 90§

Search this part in the full database
