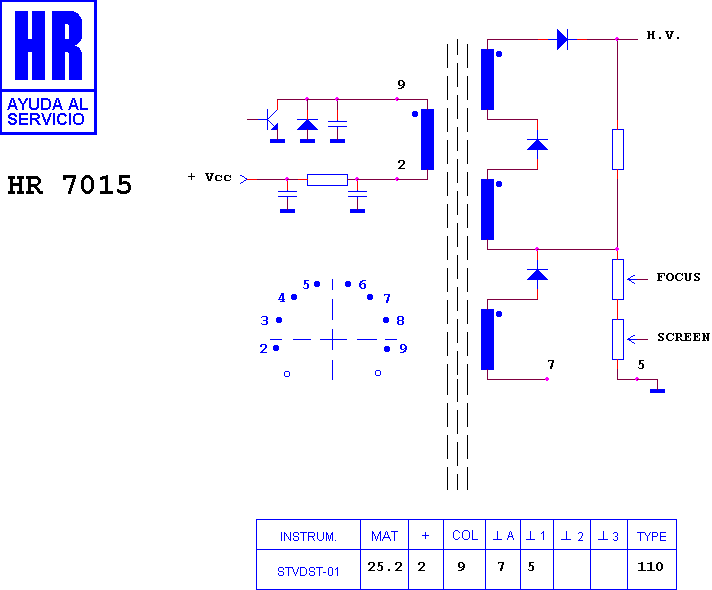

HR 7015

type ST · family 1AP2 · 25.2 kV maximum anode voltage · 110° deflection · 2 windings · 318 g

Manufacturer equivalents (3)

1105.0200 · 1105.0207 · F10N0207

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
