HR 6737

24.6 kV maximum anode voltage · 90° deflection · 4 windings · 380 g

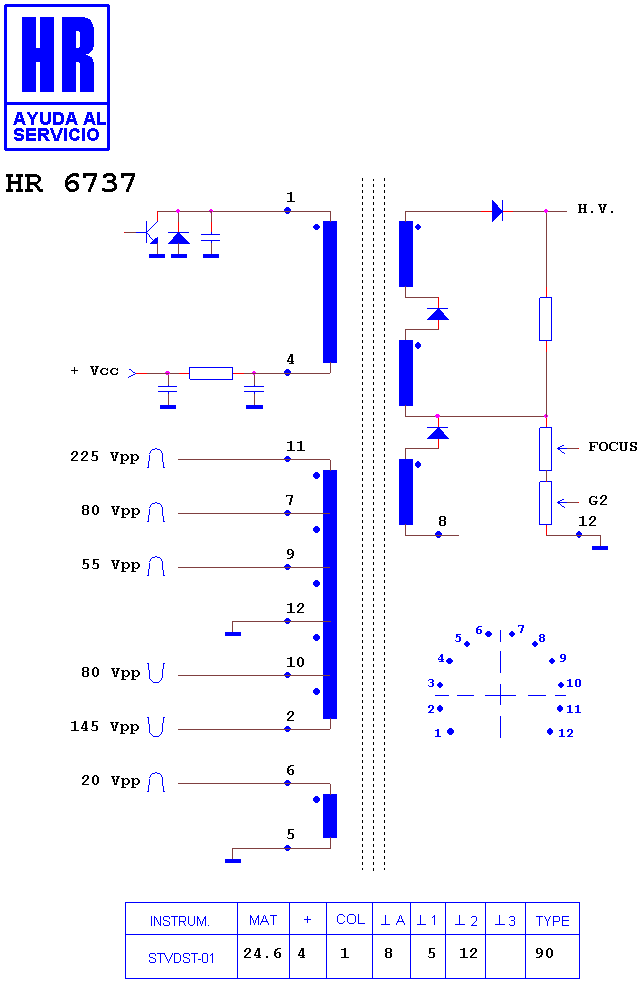

Schematic diagram for HR 6737
schematic (archived)

Manufacturer equivalents (6)

003321155 · 058.335TR3 · 3321155 · H32-60 · RO846 · TR846

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6722 · HR 6558 · HR 7053 · HR 7400

Fitted to (1)

BEKO - BEKOTEKNIK CHASIS 20.2
