HR 6716

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 380 g

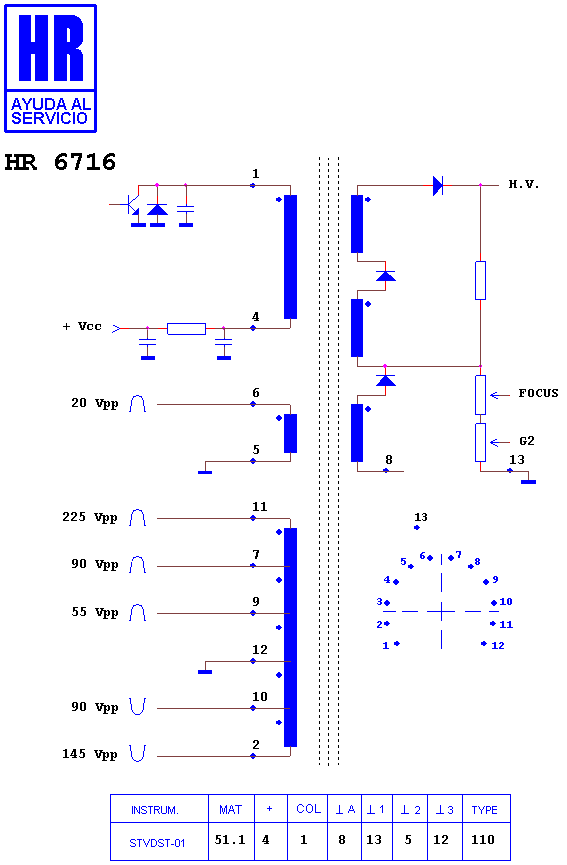

Schematic diagram for HR 6716
schematic (archived)

Manufacturer equivalents (7)

003321150 · 058.735EL1 · 058.735TR1 · H32-55 · HR 6716 · RO704 · TR704

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6531 · HR 8576

Fitted to (5)

BEKO - BEKOTEKNIK 2924 S · BEKO - BEKOTEKNIK CHASIS 20.2 110 · BEKO - BEKOTEKNIK CHASIS 20.2 29 100 HZ · BEKO - BEKOTEKNIK GR · BEKO - BEKOTEKNIK GR 2924 S

Search this part in the full database
