HR 6714

27.6 kV maximum anode voltage · 110° deflection · 4 windings · 590 g

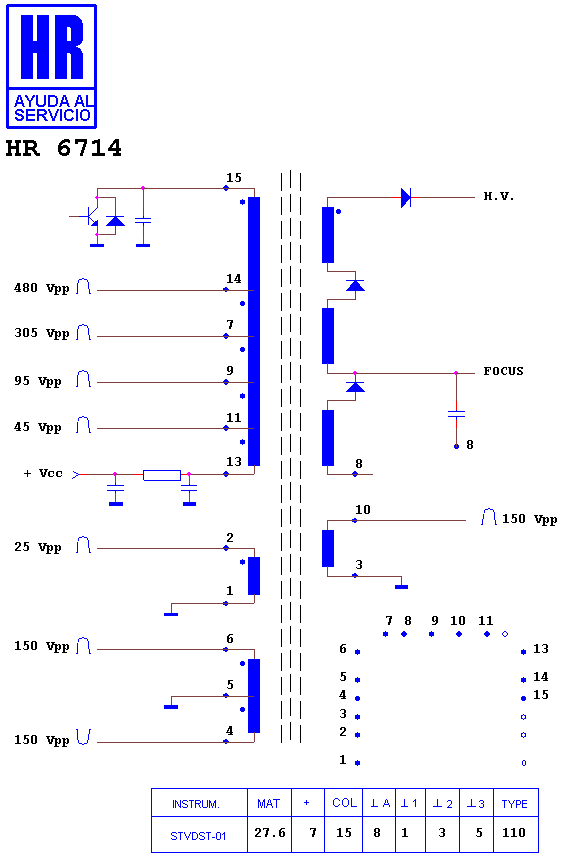

Schematic diagram for HR 6714
schematic (archived)

Manufacturer equivalents (1)

AT2076/55

Fitted to (1)

GEC L 310021
