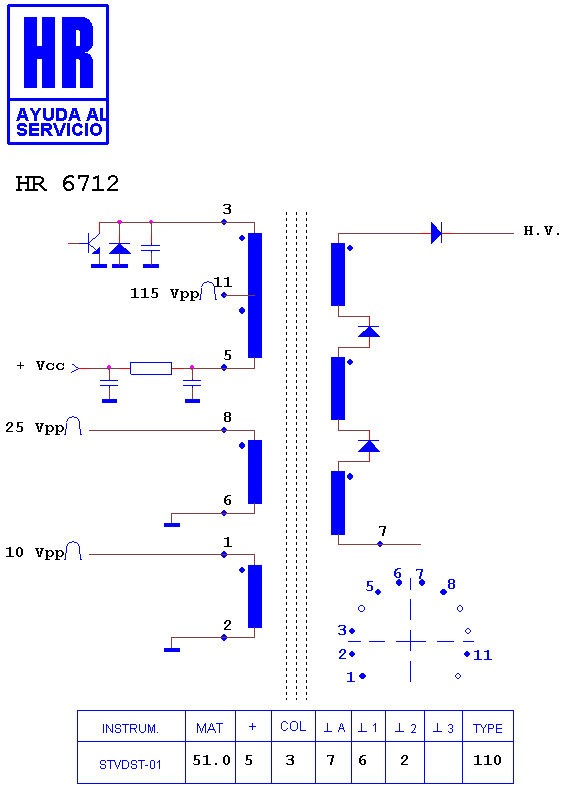

HR 6712

type ST · family 1BS1 · 51 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (2)

2 G 25034-A1B · 227853

Fitted to (8)

RCA CHASIS CTC 188 A · RCA CTC 188 A · RCA PS 52690 DX 1 · RCA PS 52690 LX 1 · RCA PS 60690 DX 1 · RCA PS 60690 LG 1 · RCA PS 80690 DW 1 · RCA PS 80690 WW 1
