HR 6679

24.7 kV maximum anode voltage · L° deflection · 4 windings · 380 g

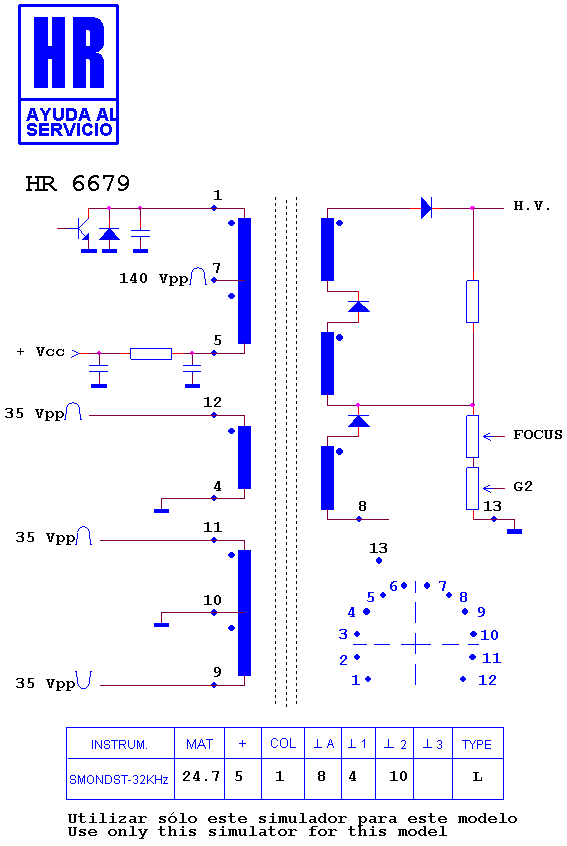

Schematic diagram for HR 6679
schematic
Schematic diagram for HR 6679
schematic (archived)

Manufacturer equivalents (1)

HR6679
