HR 6674

type SM · family 1BS1 · 30.3 kV maximum anode voltage · L° deflection · 4 windings · 367 g

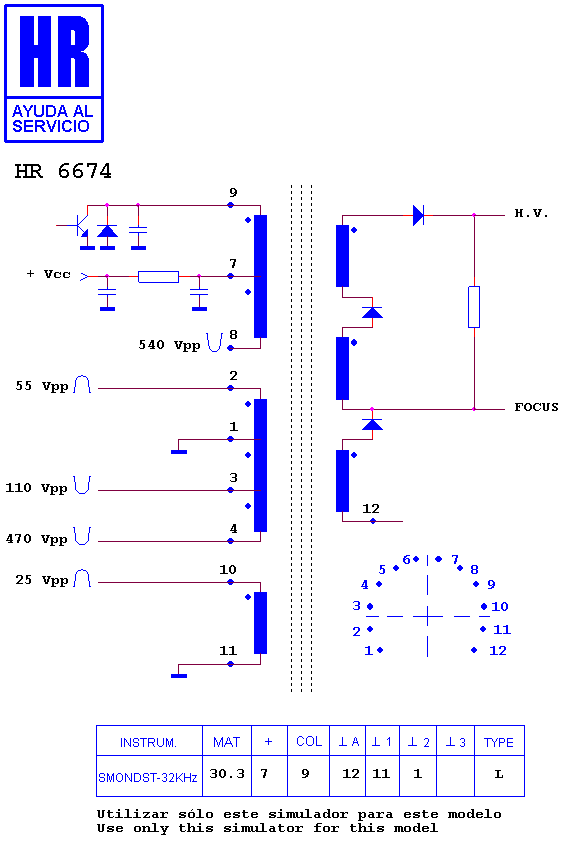

Schematic diagram for HR 6674
schematic

Manufacturer equivalents (2)

105511.70 · 40308-51

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6666 · HR 6670

Fitted to (14)

BRE CHASIS ICC 19 · FERGUSON-THORN-EMI CHASIS ICC 19 · NORDMENDE CHASIS ICC 19 · SABA CHASIS ICC 19 · SABA T 7040 E · SABA T 7041 E · TELEFUNKEN CHASIS ICC 19 · TELEFUNKEN DF 442 E · THOMSON 28 DF 40 E · THOMSON 28 DF 42 E · THOMSON 28 DG 42 E · THOMSON 29 DU 88 M · THOMSON CHASIS ICC 19 · THOMSON DF 442 E
