HR 6664

29.1 kV maximum anode voltage · 110° deflection · 3 windings · 380 g

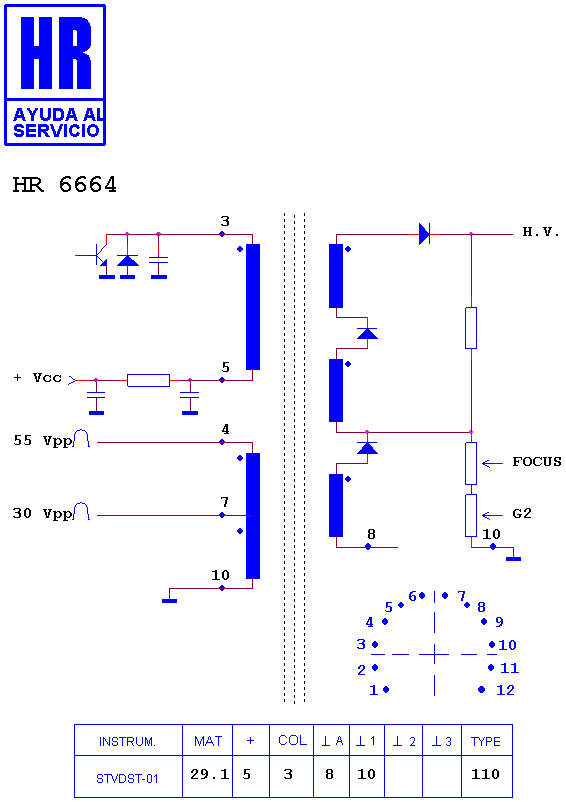

Schematic diagram for HR 6664 — schematic

Schematic diagram for HR 6664 — schematic (archived)

Manufacturer equivalents (1)

HR6664

Search this part in the full database
