HR 6655

type ST · family 1BS1 · 367 g

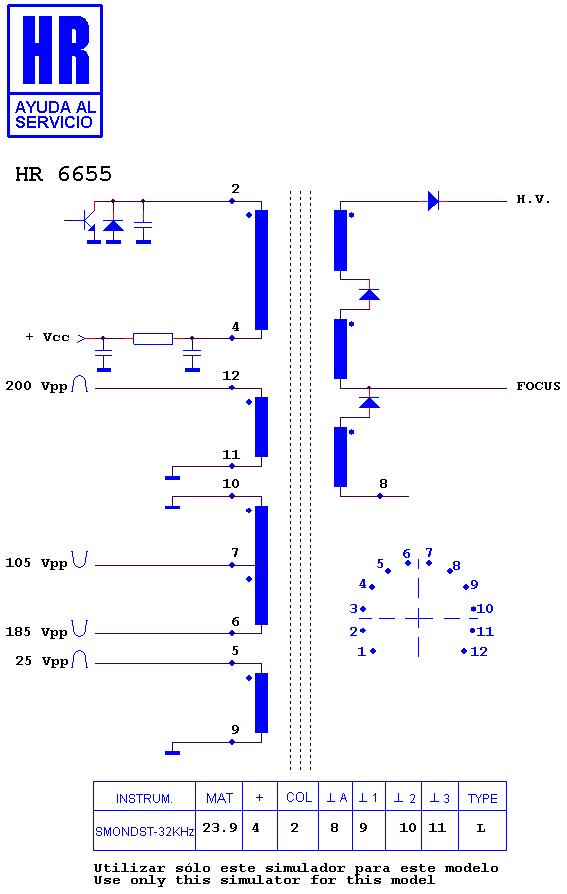

Schematic diagram for HR 6655
schematic (recovered)

Manufacturer equivalents (4)

204403.80 · 246.791 · 246.844 · 309 311 982

Fitted to (8)

NORDMENDE SPACE SYSTEM 92 HS · SABA SV 92 HS · TELEFUNKEN 365 A 2 NIC · TELEFUNKEN 9500 D · TELEFUNKEN CHASIS 620 · TELEFUNKEN PALCOLOR BS · TELEFUNKEN PALCOLOR SM · THOMSON HD 16:9
