HR 6640

type ST · family 1IP · 30.6 kV maximum anode voltage · 110° deflection · 404 g

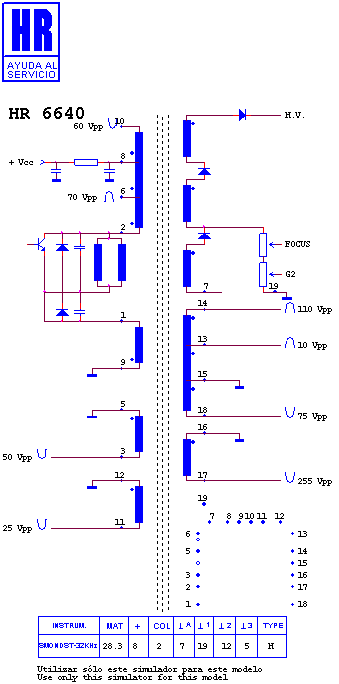

Schematic diagram for HR 6640
schematic (recovered)
Schematic diagram for HR 6640
accessory sheet

Manufacturer equivalents (14)

3122 138 38450 · 3122 138 38451 · 3122 138 38452 · 3122 138 38453 · 3122 138 38454 · 3122 138 38455 · 3845 · 38450 · 38451 · 38452 · 38453 · 38454 · 38455 · 4822 140 10427

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

Fitted to (7)

PHILIPS 29 FL 1770 · PHILIPS 29 FL 1770/75 R · PHILIPS 29 FL 1775 · PHILIPS 29 FL 1775/77 · PHILIPS CHASIS FL 1 · PHILIPS CHASIS FL 1 S · PHILIPS CHASIS FL 1.0 S
