HR 6639

type SM · family 1IP · 28.8 kV maximum anode voltage · H° deflection · 8 windings · 404 g

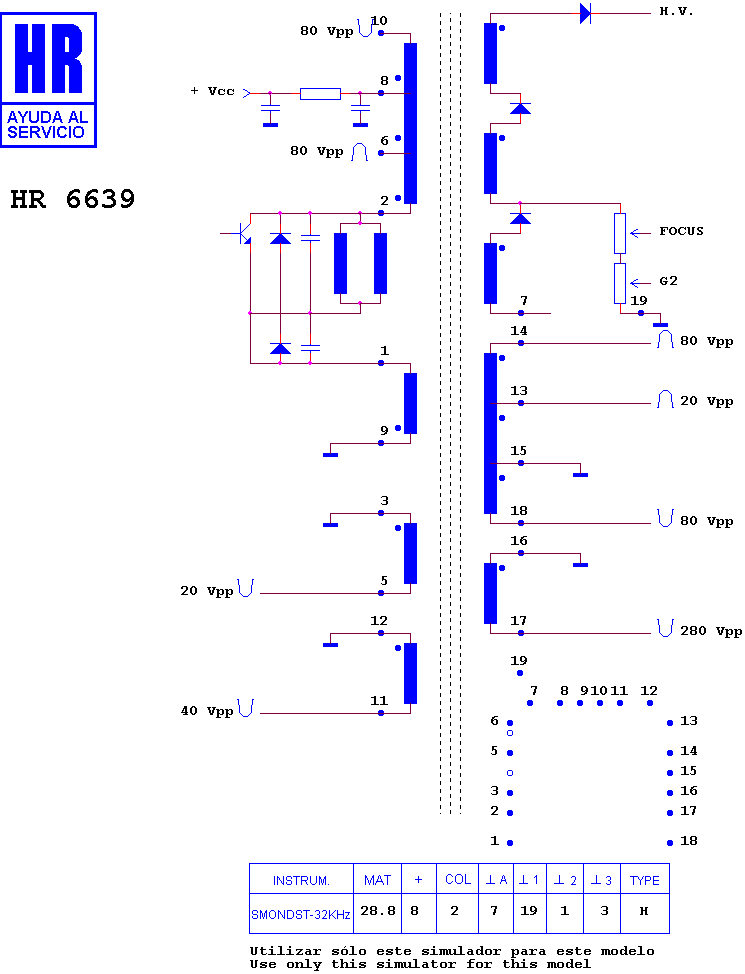

Schematic diagram for HR 6639
schematic

Manufacturer equivalents (8)

140 10476 · 26830265 · 30265 · 3122 268 30264 · 3122 268 30265 · 3122 268 31264 · 312226831265 · 4822 140 10476

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6629

Fitted to (17)

PHILIPS 28 PW 960 A/01 · PHILIPS 28 PW 960 A/19 · PHILIPS 28 PW 960 B/01 · PHILIPS 28 PW 960 B/19 · PHILIPS 28 PW 960 B/42 · PHILIPS 28 PW 960 B/58 · PHILIPS 28 PW 962 A/05 · PHILIPS 28 PW 962 A/05B · PHILIPS 28 PW 962 A/07B · PHILIPS 28 PW 962 A/12B · PHILIPS 28 PW 962 A/13 · PHILIPS 28 PW 962 A/13B · PHILIPS 28 PW 962 B/12 · PHILIPS 28 PW 962 B/19 · PHILIPS CHASIS FL 2.14 · PHILIPS CHASIS FL 2.24 · PHILIPS CHASIS FL 2.24 AA

Search this part in the full database
