HR 6621

type SM · family 1BP1 · 23.6 kV maximum anode voltage · L° deflection · 4 windings · 380 g

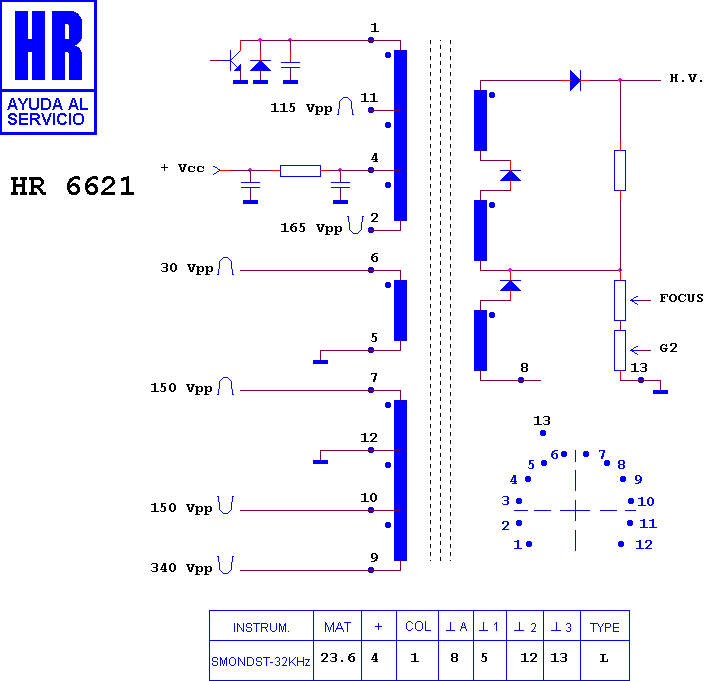

Schematic diagram for HR 6621
schematic

Manufacturer equivalents (5)

1182.1317 · 1182.1317 A · 444 50 0101 · 444000058 · 444000058-701

Fitted to (8)

METZ CHASIS 693 100 HZ · METZ CHASIS 693 G · METZ CHASIS 693 G-5017 B · METZ CHASIS 693 GA-4025 · METZ CHASIS 693 GA-4068 · METZ CHASIS 693 GA-5014 · METZ CHASIS 693 GA-5065 · METZ CHASIS 693 GS 100 HZ
