HR 6617

type SM · family 1IS2 · 58.1 kV maximum anode voltage · H° deflection · 3 windings · 412 g

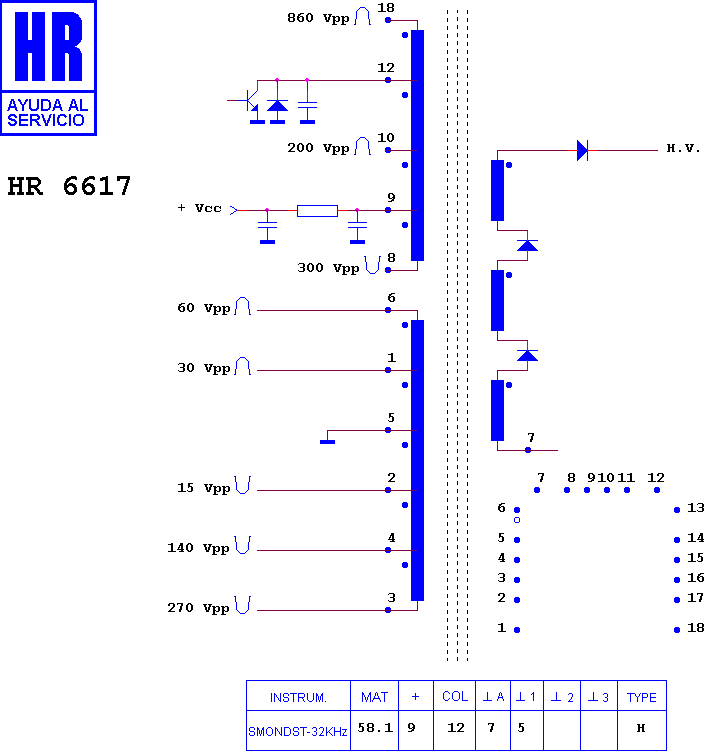

Schematic diagram for HR 6617 — schematic

Manufacturer equivalents (1)

HR 6617

Search this part in the full database
