HR 6611

type SM · family 1IS1 · 19.6 kV maximum anode voltage · L° deflection · 5 windings · 430 g

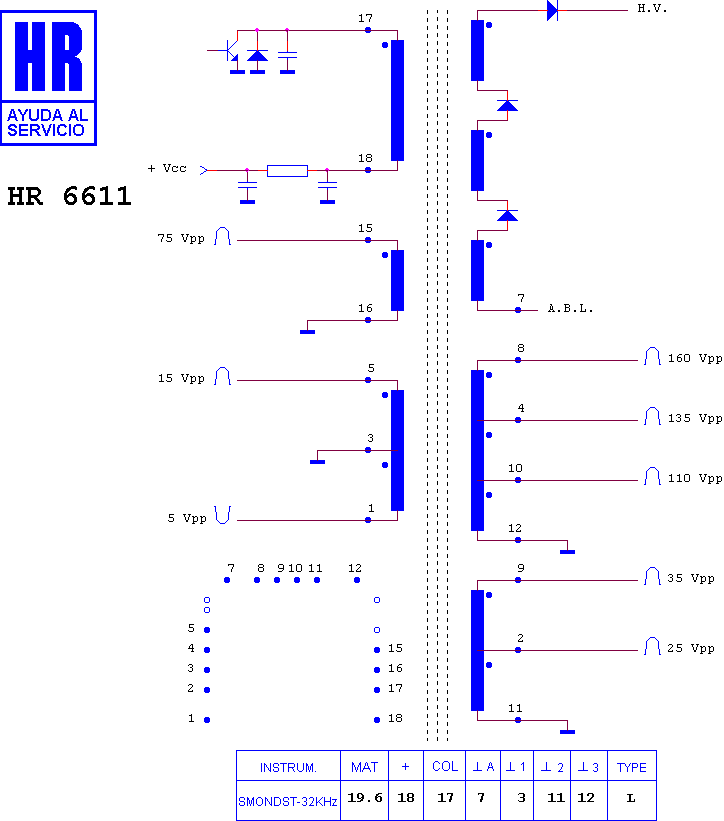

Schematic diagram for HR 6611
schematic
Schematic diagram for HR 6611
accessory sheet

Manufacturer equivalents (10)

3122 138 37580 · 3122 138 37581 · 3122 138 37582 · 37580 · 37581 · 37582 · 37583 · 37584 · 37585 · AT 2077/60

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.
