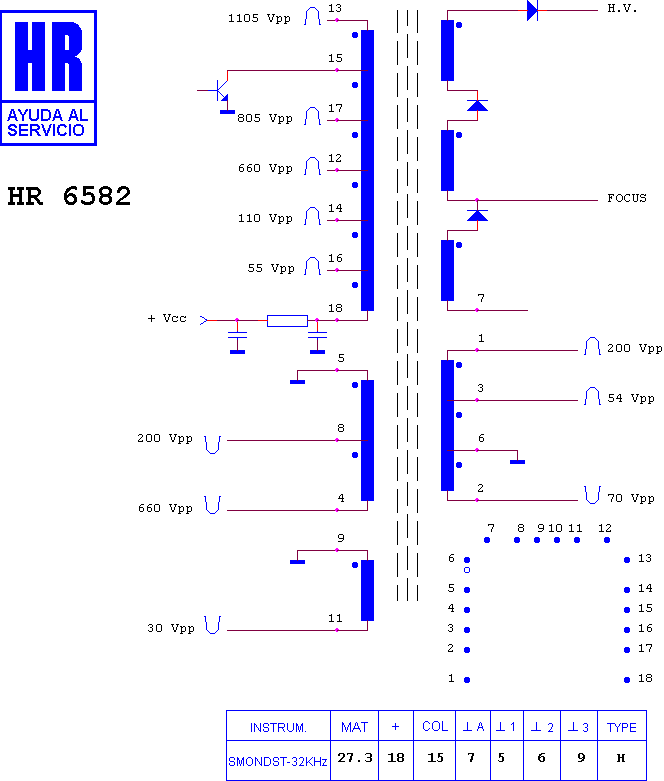

HR 6582

type SM · family 1IS1 · 27.3 kV maximum anode voltage · H° deflection · 408 g

Manufacturer equivalents (3)

3122 138 37400 · 3122 138 37404 · AT 2077/85 A

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead
• HR 16524 — Focus control
