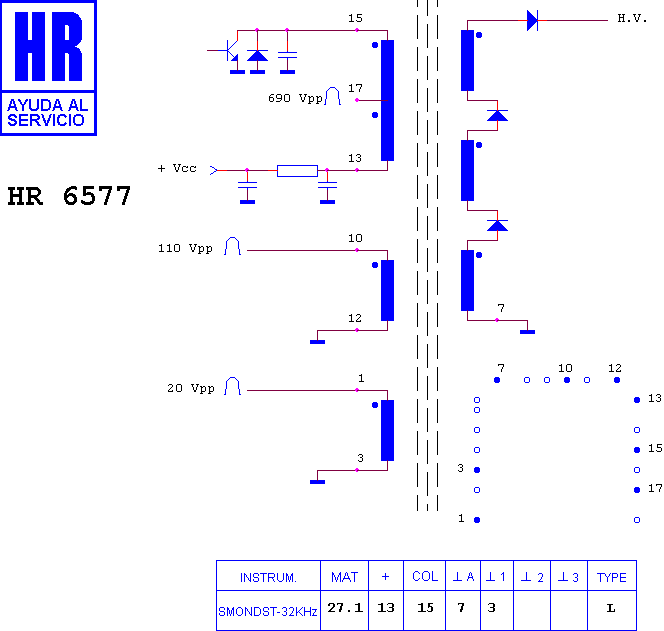

HR 6577

type SM · family 1IS1 · 27.1 kV maximum anode voltage · L° deflection · 4 windings · 400 g

Manufacturer equivalents (2)

6577-00 · HR 6577

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16518 — Screened EHT lead
