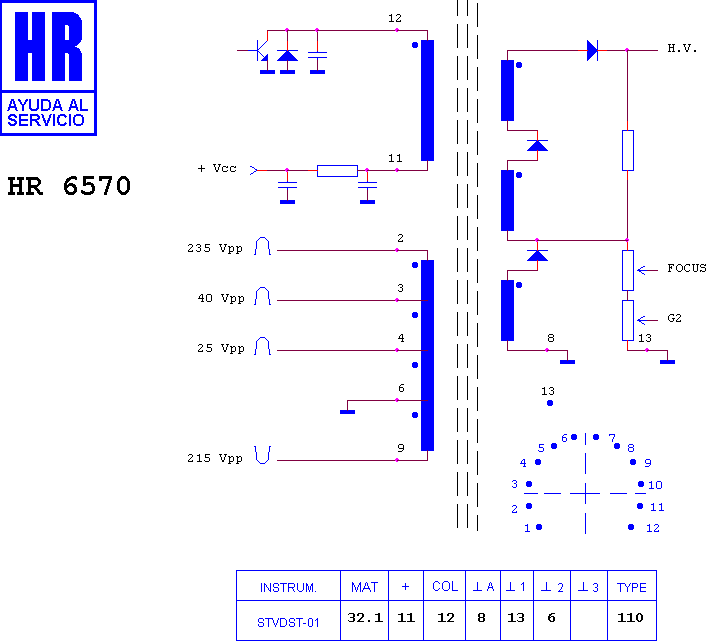

HR 6570

type ST · family 1BP1 · 32.1 kV maximum anode voltage · 110° deflection · 396 g

Manufacturer equivalents (11)

1182.0977 · 1182.0977 A · 1182.09770 · 1182.6023 · 276-21100 · 276-22100 · 276-22100.050 · 276-22709 · FAT 30534 · HR 6570 · KN 30534

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Fitted to (12)

LOEWE / LOEWE-OPTA ARCADA 72 · LOEWE / LOEWE-OPTA ART CONCEPT Q 2000 · LOEWE / LOEWE-OPTA ART V 630 · LOEWE / LOEWE-OPTA ART V 700 · LOEWE / LOEWE-OPTA ART VISION 630 · LOEWE / LOEWE-OPTA ART VISION 700 · LOEWE / LOEWE-OPTA CHASIS Q 2000 · LOEWE / LOEWE-OPTA CHASIS Q 2000 32" 16/9 · LOEWE / LOEWE-OPTA CHASIS Q 2100 32" 16/9 · LOEWE / LOEWE-OPTA Q 2000 · LOEWE / LOEWE-OPTA Q 2000 32" 16/9 · LOEWE / LOEWE-OPTA TV 700
