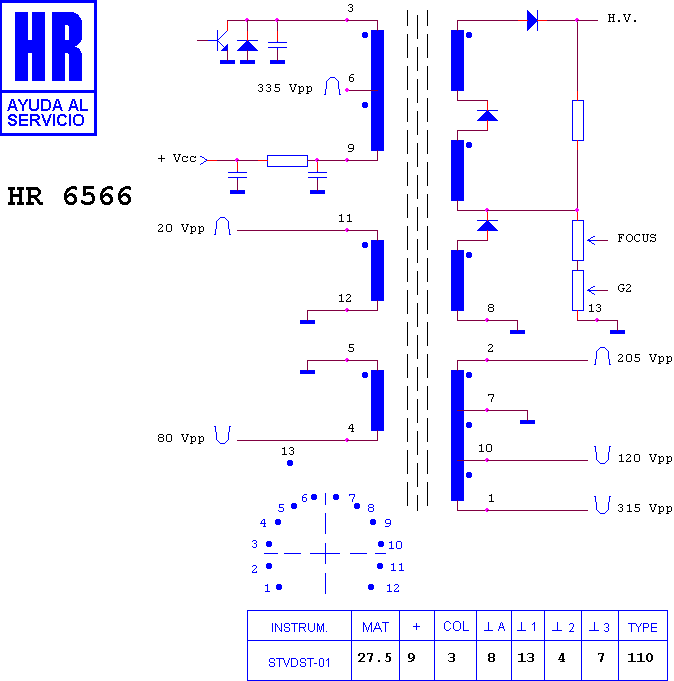

HR 6566

type ST · family 1BP1 · 27.5 kV maximum anode voltage · 110° deflection · 5 windings · 380 g

Manufacturer equivalents (8)

044 224 4 · 1182.1177 · 1182.1177 B · 1182.1177 C · 442244 · 4536 00 14 · FAT 30399 · HR 6566

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8553 · HR 6558 · HR 6081

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (6)

QUELLE 008.474 · QUELLE 067.643 · QUELLE FT 7162 · QUELLE UNIVERSUM · UNIVERSUM 676437 · UNIVERSUM FT 71500
