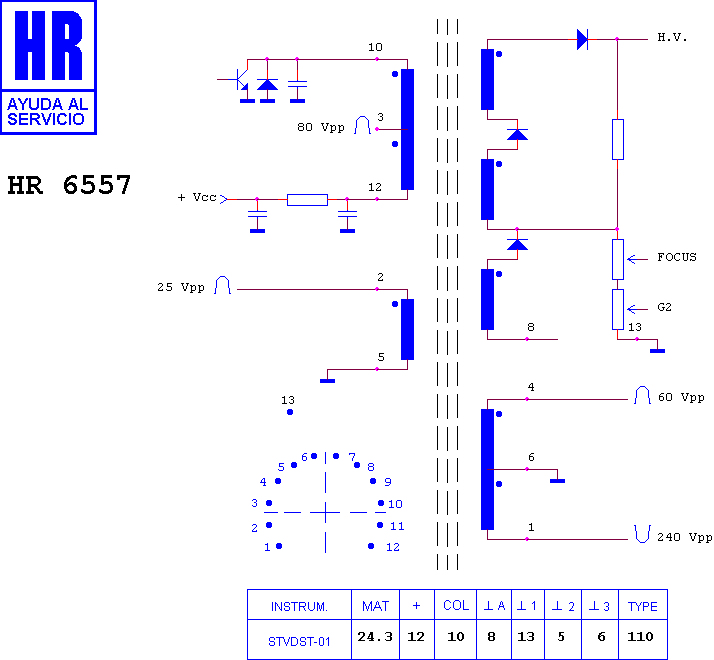

HR 6557

type ST · family 1BP1 · 24.3 kV maximum anode voltage · 110° deflection · 366 g

Manufacturer equivalents (3)

1182.0687 · 63.2070.000 · MAT 33369

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (8)

BRION VEGA CHASIS BS 990 · KENDO CHASIS BS 990 · KENDO CT 63 S 92 · KENDO CT 6392 · KENDO CT 71 S 92 N · KENNEDY CT 63 S 92 · SELECO CHASIS BS 990 · SELECO CHASIS TAST-TAM
