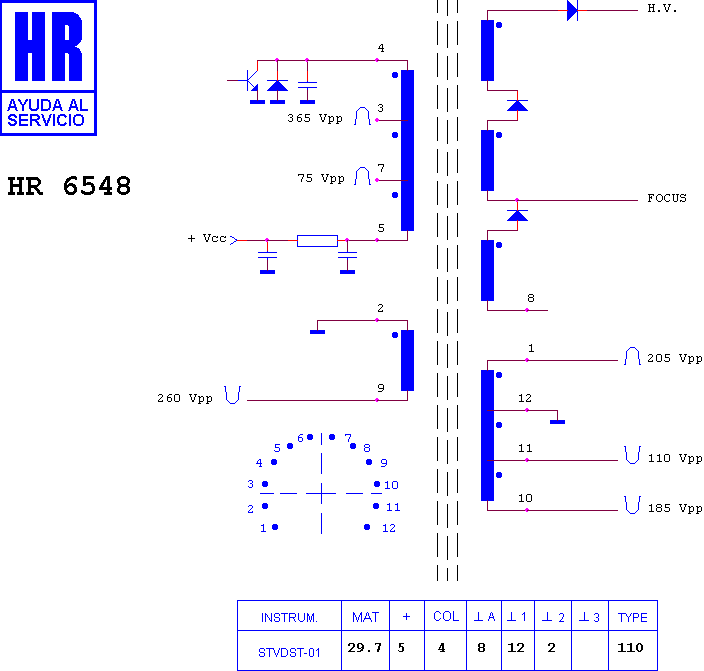

HR 6548

type ST · family 1BS1 · 29.7 kV maximum anode voltage · 110° deflection · 4 windings · 367 g

Manufacturer equivalents (4)

470986.00 · 470986.01 · 470986.02 · 534 TX 0183

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6076

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16529 — Focus control

Fitted to (1)

THOMSON TVP 3000
