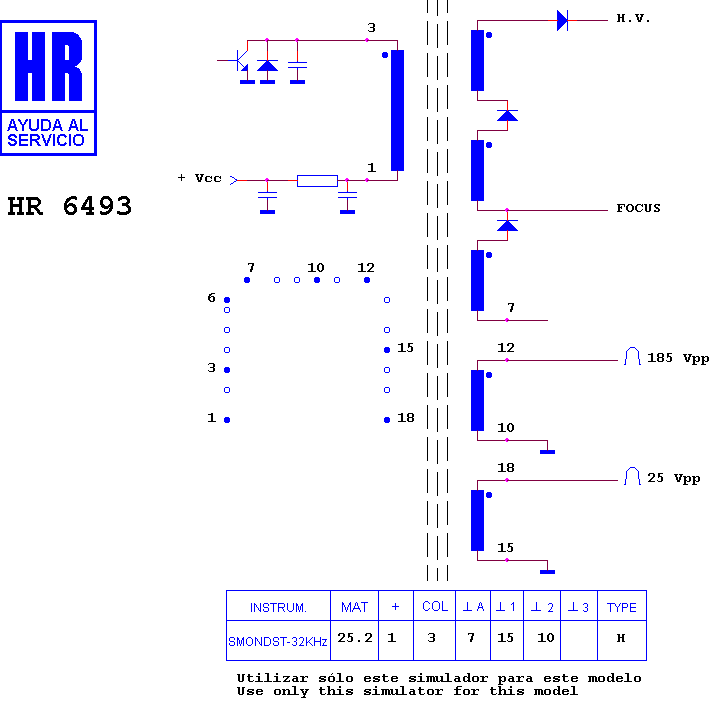

HR 6493

type SM · family 1IS1 · 25.2 kV maximum anode voltage · H° deflection · 3 windings · 396 g

Manufacturer equivalents (6)

0036 2140 0001 · 362140-0001 · 362140-1 · 4835 140 67162 · AP 2140/01 · AT 2140/01

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Fitted to (2)

PHILIPS RSH 423 AK 08 · SYLVANIA RSH 423 AK 08
