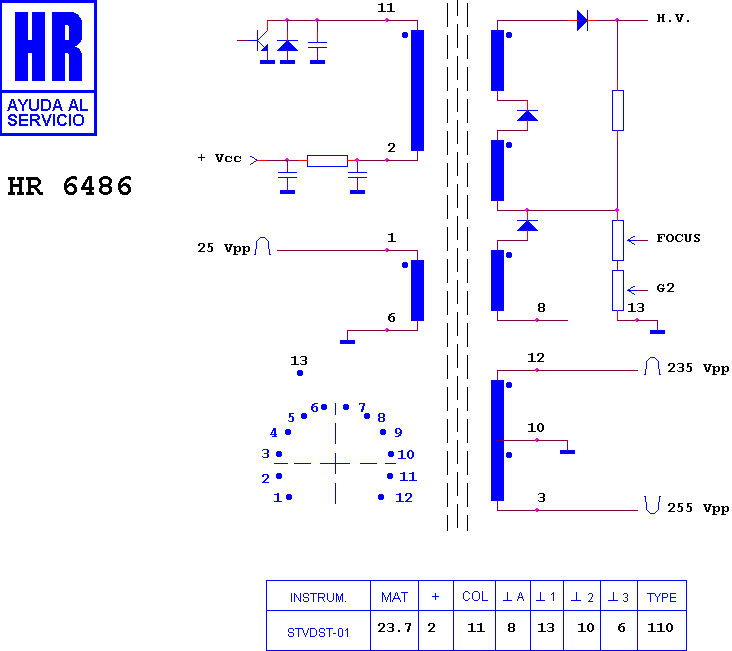

HR 6486

type ST · family 1BP1 · 23.7 kV maximum anode voltage · 110° deflection · 396 g

Manufacturer equivalents (6)

1182.1057 · 1182.1057 B · 1192.0577 · 63.2075.000 · FAT 30450 · KN 30450

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (11)

ELBE 28 S 557 · ELBE CHASIS E 19 · ELBE CHASIS P 200 · ELBE CHASIS PC 200 · ELBE TVC 2524 TXT · ELBE TVC 2824 · GOODMANS 286 NS · SELECO 25 SM 431 · SELECO CHASIS TEAM 110 MONO · SELECO TEAM MONO · SELECO TEAM MONO 110§

Search this part in the full database
