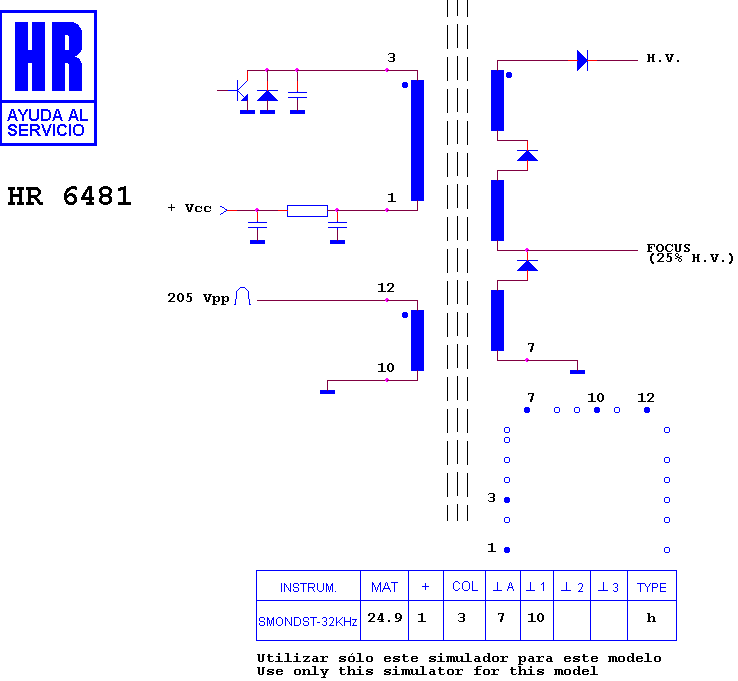

HR 6481

type SM · family 1IS1 · 24.9 kV maximum anode voltage · H° deflection · 3 windings · 398 g

Manufacturer equivalents (10)

0036 2135 0002 · 362135-0002 · 362135-2 · 37910 · 37911 · 37912 · 37913 · 37914 · 37915 · 4835 146 27005

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Fitted to (4)

MAGNAVOX PTV 377 · PHILIPS 25 DC 2660 · PHILIPS 25 DC 2660/21 R · PHILIPS PTV 377
