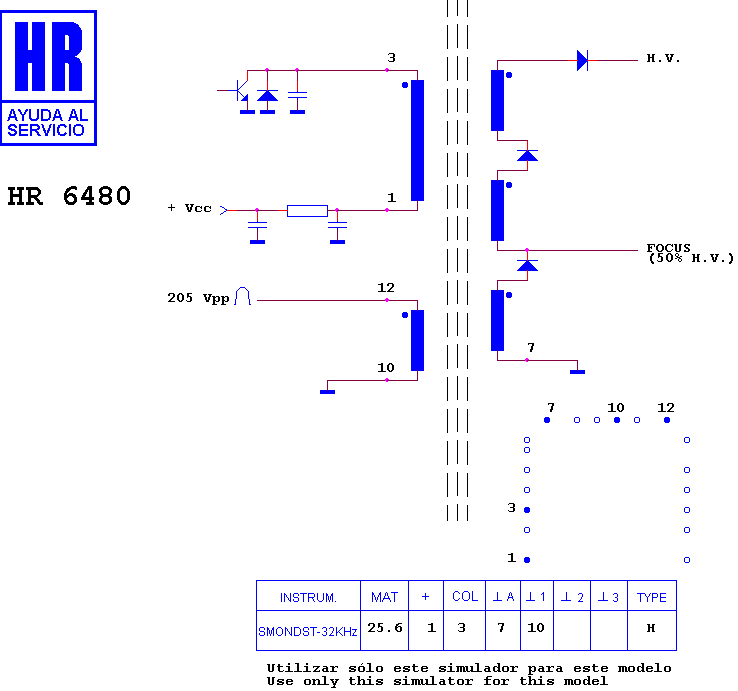

HR 6480

type SM · family 1IS1 · 25.6 kV maximum anode voltage · H° deflection · 3 windings · 400 g

Manufacturer equivalents (9)

0036 2135 0001 · 362135-0001 · 362135-1 · 37920 · 37921 · 37922 · 37923 · 37924 · 37925

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Search this part in the full database
