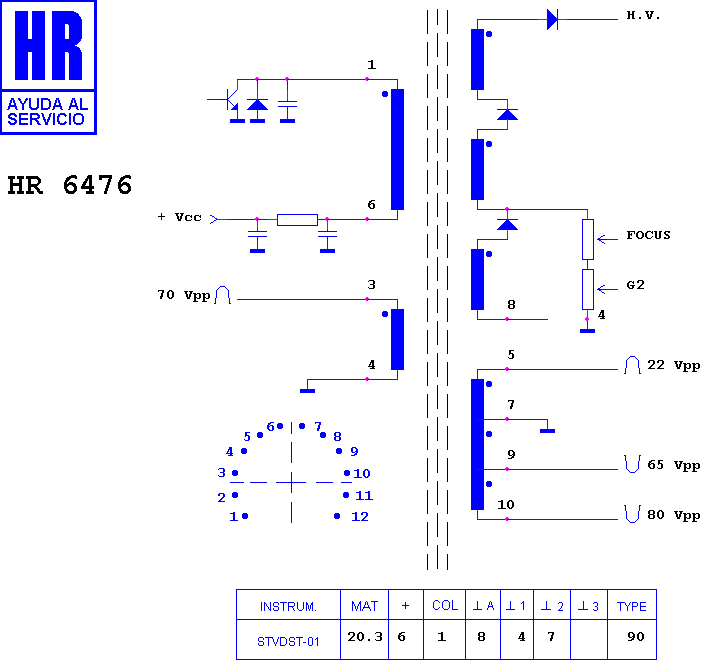

HR 6476

type ST · family 1BP1 · 20.3 kV maximum anode voltage · 90° deflection · 4 windings · 365 g

Manufacturer equivalents (2)

2433841 · 2433841 H

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7524

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
