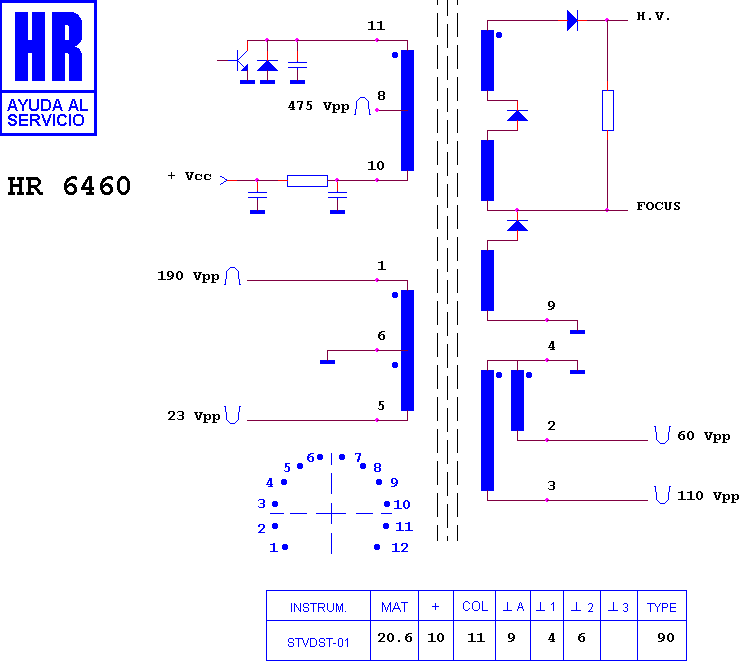

HR 6460

type ST · family 1BS1 · 20.6 kV maximum anode voltage · 90° deflection · 410 g

Manufacturer equivalents (9)

003370115 · 100351.60 · 40308-28 · 534 TX 0318 · FAT 30530 · HR 6460 · KN 30530 · RO924 · TR924

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16529 — Focus control

Fitted to (18)

FERGUSON-THORN-EMI CHASIS ICC 9 · FERGUSON-THORN-EMI D 51 ND · FERGUSON-THORN-EMI D 59 F · NORDMENDE FUTURA 55 VS · SABA M 5531 SL · SABA M 5531 VT · TELEFUNKEN 11 TF · TELEFUNKEN 325 M · TELEFUNKEN 352 M · TELEFUNKEN GY · TELEFUNKEN GY 11 TF · TELEFUNKEN PALCOLOR S · TELEFUNKEN S 352 M · THOMSON 55 MT 60 L · THOMSON 55766 ST · THOMSON 55766 STL · THOMSON M 55 M · THOMSON T 60 TX

Search this part in the full database
