HR 6424

24.9 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

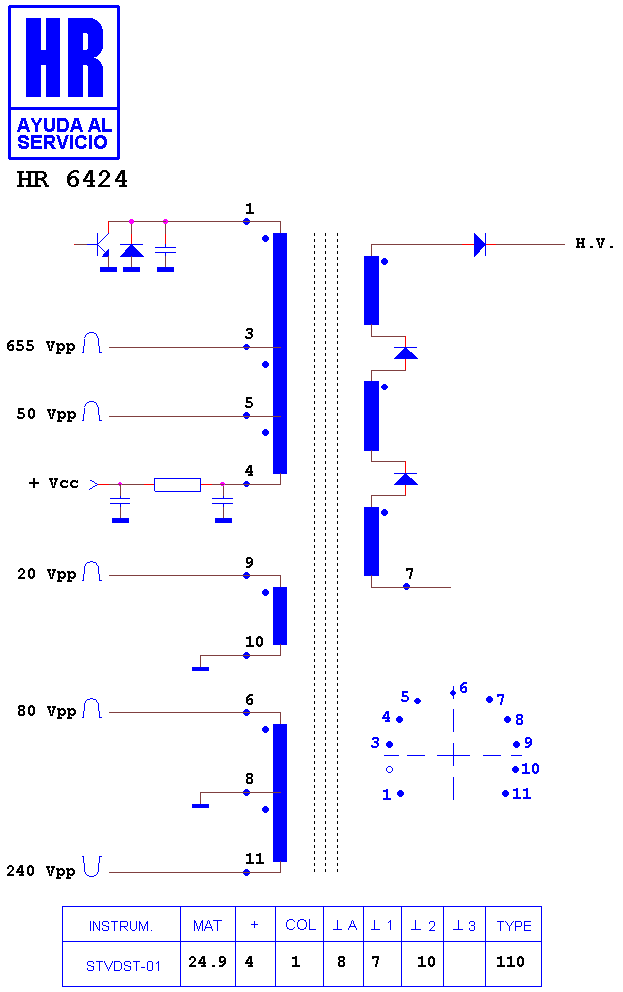

Schematic diagram for HR 6424
schematic (archived)

Manufacturer equivalents (4)

334B07601 · 334B076010 · 334P07601 · 840.000.141.142

Fitted to (14)

MITSUBISHI MONITOR · MITSUBISHI TC 3701 · MITSUBISHI TC 3762 · MITSUBISHI VF 457 · MITSUBISHI VR 457 E · MITSUBISHI VS 4 S 7 E · MITSUBISHI VS 403 · MITSUBISHI VS 403 R · MITSUBISHI VS 417 · MITSUBISHI VS 454 E · MITSUBISHI VS 457 · MITSUBISHI VS 457 E · MITSUBISHI VS 457 E (0) · MITSUBISHI VS 457 HD

Search this part in the full database
