HR 6416

type ST · family 1TS · 354 g

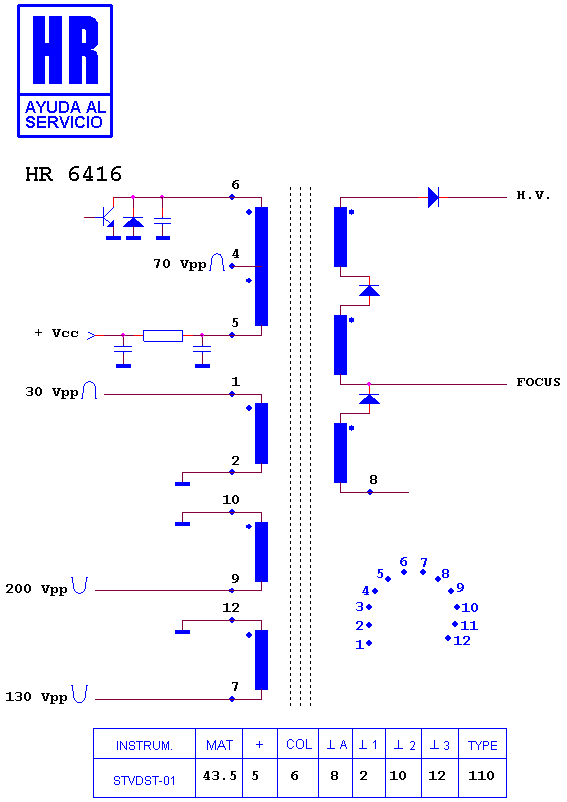

Schematic diagram for HR 6416
schematic (recovered)

Manufacturer equivalents (4)

1-439-273-00 · 1-439-273-11 · 1-439-273-12 · SP 160

Fitted to (12)

SONY CHASIS 30 P · SONY KV 2602 · SONY KV 2647 R · SONY KV 2647 RS · SONY KV 2647 RX · SONY KV 2648 R · SONY KV 2649 R · SONY KV 2649 RX · SONY KV 2650 R · SONY KV 2650 RX · SONY KV 2654 R · SONY KV 2657 R
