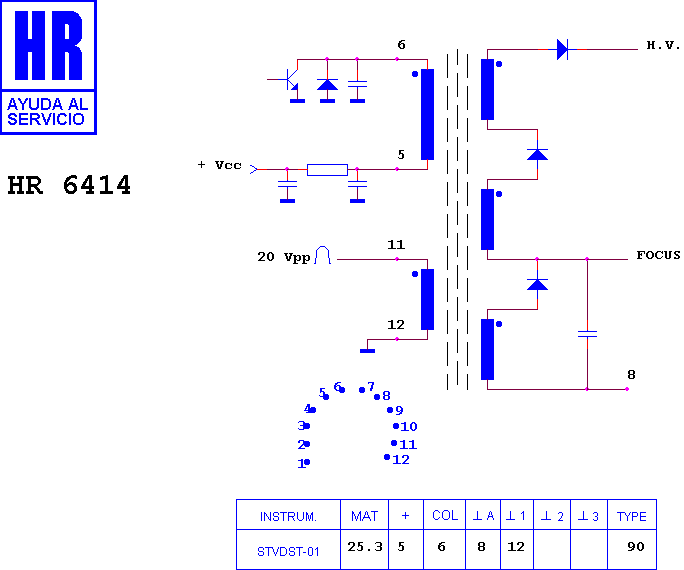

HR 6414

type ST · family 1TS · 25.3 kV maximum anode voltage · 90° deflection · 3 windings · 350 g

Manufacturer equivalents (6)

1-439-276-00 · 1-439-276-11 · 1-439-276-12 · 1-439-276-21 · FAT 3912 · ME/6123-00

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead

Fitted to (5)

SONY CHASIS HF · SONY KX 2501 · SONY KX 2501 A · SONY KX 27 PS 1 · SONY KX 27 PS 1 (W)
